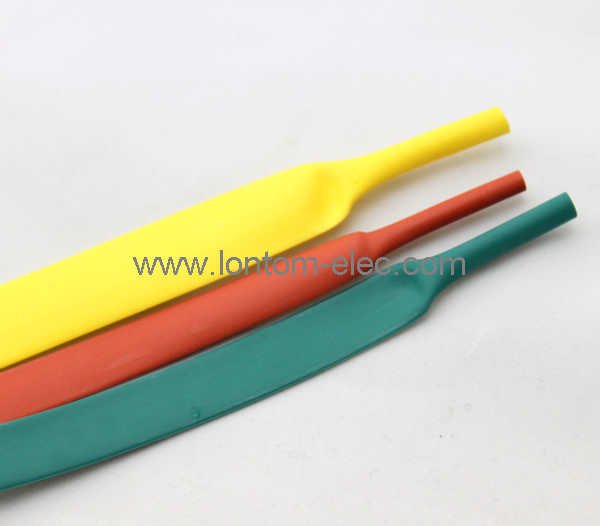

2:1 Thin Wall Heat Shrink Tube

Quantity:
  • LT-CHST
Thin wall cross-linked heat shrinkable polyolefin tubing is a cost effective choice for commercial applications. Its excellent flexibility offers a faster,reliable replacement for molding in place, dip coating and tape wrapping. TWHST is UL recognized and CSA certified at 125°C, 300V with UL VW-1 and CSA flame-retardance ratings. Material shrinks at a low temperature, reducing installation time and the risk of damage to heat sensitive components.

Size
(mm)

Before shrinkage

After shrinkage

Standard packing
 (Meters/spool)

Applicable cable
range (mm)

I/D(mm)

Wall thickness(mm)

I/D(mm)

Wall thickness(mm)

Ø1.0

1.4±0.2

0.13±0.05

≤0.65

 0.20±0.10

200

0.75~1.0

Ø1.5

1.9±0.3

0.13±0.05

≤0.85

 0.20±0.10

200

0.90~1.4

Ø2.0

2.4±0.2

0.13±0.05

≤1.00

 0.22±0.10

200

1.1~1.8

Ø2.5

2.9±0.2

0.13±0.05

≤1.30

 0.25±0.10

200

1.4~2.3

Ø3.0

3.4±0.2

0.13±0.05

≤1.50

 0.28±0.10

200

1.6~2.7

Ø3.5

3.9±0.2

0.13±0.05

≤1.80

 0.28±0.10

200

1.9~3.2

Ø4.0

4.4±0.2

0.15±0.05

≤2.00

 0.30±0.10

200

2.1~3.6

Ø4.5

4.9±0.2

0.15±0.05

≤2.30

 0.30±0.10

100

2.4~4.0

Ø5.0

5.5±0.2

0.15±0.05

≤2.5

 0.32±0.10

100

2.6~4.5

Ø6.0

6.5±0.2

0.15±0.05

≤3.0

 0.32±0.10

100

3.1~5.4

Ø7.0

7.5±0.3

0.15±0.05

≤3.5

 0.32±0.10

100

3.7~6.3

Ø8.0

8.5±0.3

0.15±0.05

≤4.0

 0.32±0.10

100

4.2~7.2

Ø9.0

9.5±0.3

0.15±0.05

≤4.5

 0.35±0.10

100

4.7~8.0

Ø10

10.5±0.3

0.15±0.05

≤5.0

 0.35±0.10

100

5.2~9.0

Ø11

11.5±0.3

0.18±0.05

≤5.5

 0.40±0.10

100

5.7~10

Ø12

12.5±0.3

0.20±0.05

≤6.0

 0.40±0.10

100

6.2~11

Ø13

13.5±0.3

0.20±0.05

≤6.5

 0.40±0.10

100

6.7~12

Ø14

14.5±0.3

0.20±0.05

≤7.0

 0.40±0.10

100

7.3~13

Ø15

15.5±0.4

0.20±0.05

≤7.5

 0.40±0.10

100

7.8~14

Ø16

16.5±0.4

0.22±0.05

≤8.0

 0.40±0.10

100

8.3~15

Ø17

17.5±0.4

0.22±0.05

≤8.5

 0.40±0.10

100

8.8~16

Ø18

18.5±0.4

0.22±0.05

≤9.0

 0.42±0.10

100

9.3~17

Ø20

20.5±0.5

0.25±0.05

≤10.0

 0.45±0.10

100

10.5~19

Ø22

22.4±0.5

0.25±0.05

≤11.0

 0.45±0.10

100

11.5~20.5

Ø25

25.5±0.5

0.25±0.05

≤12.5

 0.45±0.10

100

13.0~24
