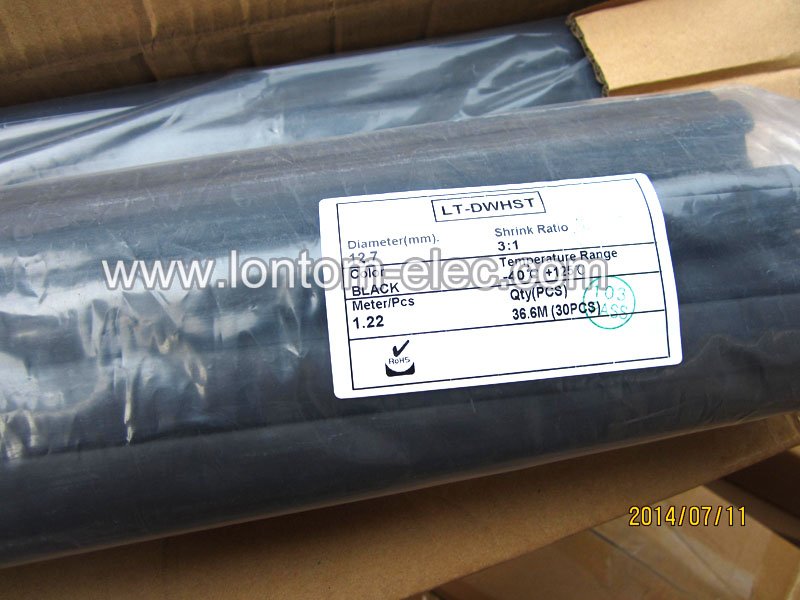

3:1 Dual Wall Heat Shrink Tube

Quantity:



Inquire Add to Basket

Model:
LT-DWHST(3:1)

This product provides both electrical insulation and mechanical protection as well as a moisture proof environmental seal.

RELATED PRODUCTS

4:1 Semi-Rigid Adhesive Heat Shrink Tubing

2:1 Fabric Heat Shrink Tubing

Heat Shrink Tube Printing

PTFE/Teflon Non Shrink Tubing

Mini Kit Heat Shrink Tubing

2:1 Thin Wall Heat Shrink Tube

EPDM Cold Shrink Tubes

Heavy Wall Heat Shrink Tubing

Gas Hose Heat Shrink Tubing

Medium Wall Heat Shrink Tubing

1KV,10KV Bus Bar Heat Shrink Sleeve

Kynar/PVDF Heat Shrink Tubing

Non-Slip Heat Shrink Sleeve

Yellow Green Heat Shrink Tubing

PET Heat-Shrinking Sleeve

Identification Heat Shrinkable Marker Sleeves

PTFE Heat Shrink Tubing

3:1 Polyolefin Heat Shrink Tubing

2:1 Polyolefin Heat Shrink Tubing

Heat shrink Gas Hose Tube

PRODUCT LIST

CONTACT US

Add: Room 516 of Building A, No.1500 of Longwu Road, Shanghai 200231,China
Tel: 86-21-63147475
Phone: 86-13818052015
Fax: 86-21-64285332
E-mail: ellenjie@lontom-elec.com
ellenjie@163.com
QQ: 1554318254
Skype: ellenjie
Contact Person: Ms. Ellen Jie

CONTACT US

Size		As supplied(mm)		After recovered(mm)			Standard package	Application Range (mm)
Inch	mm	Min. I.D.	Wall Thickness	Max. I.D.	Total W.T.	Adhesive Thickness	Meter/Spool	Application Range (mm)
1/8	Φ3.2	3.2	0.30±0.08	1	0.90±0.15	0.35±0.10	200	1.0~3.1
3/16	Φ4.8	4.8	0.46±0.08	1.6	1.00±0.15	0.40±0.10	100	1.8~4.6
1/4	Φ6.4	6.4	0.50±0.08	2.2	1.25±0.15	0.45±0.12	100	2.4~6.4
5/16	Φ7.9	7.9	0.52±0.08	2.7	1.30±0.15	0.50±0.12	100	2.9~7.7
3/8	Φ9.5	9.5	0.55±0.08	3.2	1.40±0.15	0.50±0.12	50	3.4~9.4
1/2	Φ12.7	12.7	0.68±0.08	4.2	1.70±0.15	0.50±0.12	1.22 meter/pc	4.4~12.5
5/8	Φ15.0	15	0.70±0.10	5.2	1.80±0.15	0.55±0.15	1.22 meter/pc	5.4~14.8
3/4	Φ19.1	19.1	0.76±0.10	6.3	1.95±0.15	0.55±0.15	1.22 meter/pc	6.5~18.8
1	Φ25.4	25.4	0.78±0.10	8.5	2.05±0.20	0.55±0.15	1.22 meter/pc	8.8~25
1-1/4	Φ30.0	30	0.80±0.10	10.2	2.20±0.20	0.60±0.15	1.22 meter/pc	10.5~30
1-1/2	Φ39.0	39	0.85±0.10	13.5	2.50±0.20	0.60±0.15	1.22 meter/pc	14.0~39
2	Φ50.0	50	0.95±0.10	17	2.80±0.25	0.70±0.15	1.22 meter/pc	17.5~49
2-1/2	Φ64	64	0.95±0.10	21	3.00±0.25	0.70±0.15	1.22 meter/pc	22~62
3	Φ75	76	1.00±0.15	25	3.00±0.30	1.00±0.20	1.22 meter/pc	26~72
3-1/2	Φ90	90	1.00±0.15	30	3.00±0.30	1.00±0.20	1.22 meter/pc	32~88
4	Φ100	100	1.20±0.15	34	3.00±0.30	1.00±0.20	1.22 meter/pc	36~90
5	Φ125	125	1.20±0.15	42	3.00±0.30	1.00±0.20	1.22 meter/pc	44~125

Size		As supplied(mm)		After recovered(mm)			Standard package	Application Range (mm)
Inch	mm	Min. I.D.	Wall Thickness	Max. I.D.	Total W.T.	Adhesive Thickness	Meter/Spool	Application Range (mm)
1/8	Φ3.2	3.2	0.30±0.08	1	0.90±0.15	0.35±0.10	200	1.0~3.1
3/16	Φ4.8	4.8	0.46±0.08	1.6	1.00±0.15	0.40±0.10	100	1.8~4.6
1/4	Φ6.4	6.4	0.50±0.08	2.2	1.25±0.15	0.45±0.12	100	2.4~6.4
5/16	Φ7.9	7.9	0.52±0.08	2.7	1.30±0.15	0.50±0.12	100	2.9~7.7
3/8	Φ9.5	9.5	0.55±0.08	3.2	1.40±0.15	0.50±0.12	50	3.4~9.4
1/2	Φ12.7	12.7	0.68±0.08	4.2	1.70±0.15	0.50±0.12	1.22 meter/pc	4.4~12.5
5/8	Φ15.0	15	0.70±0.10	5.2	1.80±0.15	0.55±0.15	1.22 meter/pc	5.4~14.8
3/4	Φ19.1	19.1	0.76±0.10	6.3	1.95±0.15	0.55±0.15	1.22 meter/pc	6.5~18.8
1	Φ25.4	25.4	0.78±0.10	8.5	2.05±0.20	0.55±0.15	1.22 meter/pc	8.8~25
1-1/4	Φ30.0	30	0.80±0.10	10.2	2.20±0.20	0.60±0.15	1.22 meter/pc	10.5~30
1-1/2	Φ39.0	39	0.85±0.10	13.5	2.50±0.20	0.60±0.15	1.22 meter/pc	14.0~39
2	Φ50.0	50	0.95±0.10	17	2.80±0.25	0.70±0.15	1.22 meter/pc	17.5~49
2-1/2	Φ64	64	0.95±0.10	21	3.00±0.25	0.70±0.15	1.22 meter/pc	22~62
3	Φ75	76	1.00±0.15	25	3.00±0.30	1.00±0.20	1.22 meter/pc	26~72
3-1/2	Φ90	90	1.00±0.15	30	3.00±0.30	1.00±0.20	1.22 meter/pc	32~88
4	Φ100	100	1.20±0.15	34	3.00±0.30	1.00±0.20	1.22 meter/pc	36~90
5	Φ125	125	1.20±0.15	42	3.00±0.30	1.00±0.20	1.22 meter/pc	44~125
