3:1 Polyolefin Heat Shrink Tubing

Quantity:



Inquire Add to Basket

Model:

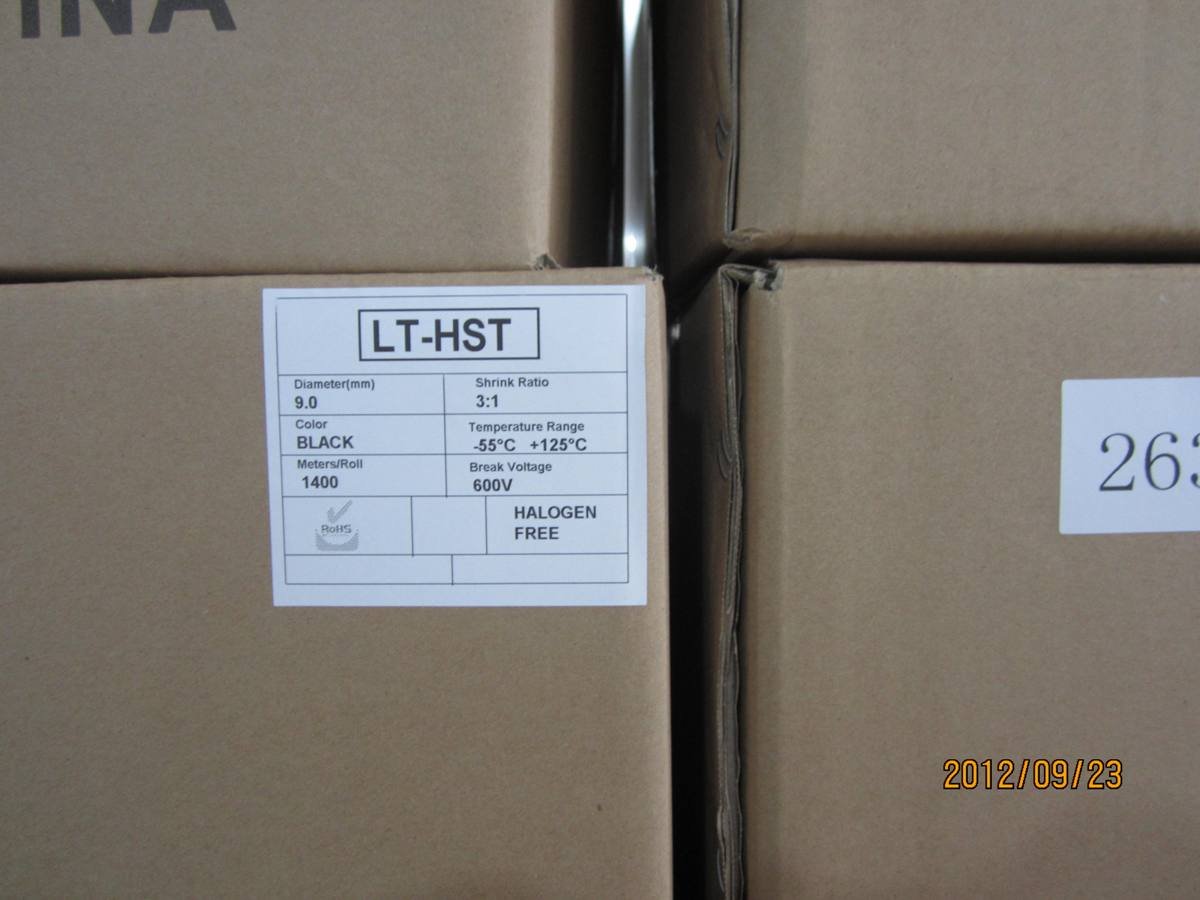

LT-HST(3:1)

Polyolefin Heat Shrink Tubing enhanced flexibility makes it perfect for electrical insulation and strain relief of commercial wire terminations and electrical connections. In addition to light-duty harnessing and jacketing, It is ideal for identification wires, cables and electrical and electronic components.

RELATED PRODUCTS

4:1 Semi-Rigid Adhesive Heat Shrink Tubing

Heat Shrink Tube Printing

2:1 Fabric Heat Shrink Tubing

PTFE/Teflon Non Shrink Tubing

Mini Kit Heat Shrink Tubing

2:1 Thin Wall Heat Shrink Tube

EPDM Cold Shrink Tubes

Heavy Wall Heat Shrink Tubing

Gas Hose Heat Shrink Tubing

Medium Wall Heat Shrink Tubing

Kynar/PVDF Heat Shrink Tubing

1KV,10KV Bus Bar Heat Shrink Sleeve

Non-Slip Heat Shrink Sleeve

Yellow Green Heat Shrink Tubing

PET Heat-Shrinking Sleeve

3:1 Dual Wall Heat Shrink Tube

Identification Heat Shrinkable Marker Sleeves

PTFE Heat Shrink Tubing

2:1 Polyolefin Heat Shrink Tubing

Heat shrink Gas Hose Tube

PRODUCT LIST

CONTACT US

Add: Room 516 of Building A, No.1500 of Longwu Road, Shanghai 200231,China
Tel: 86-21-63147475
Phone: 86-13818052015
Fax: 86-21-64285332
E-mail: ellenjie@lontom-elec.com
ellenjie@163.com
QQ: 1554318254
Skype: ellenjie
Contact Person: Ms. Ellen Jie

CONTACT US

Size (mm)	Before Shrinkage		After Shrinkage		Standard Packing (Meter/Spool)
Size (mm)	I.D.(mm)	Wall Thickness(mm)	I.D.(mm)	Wall Thickness(mm)	Standard Packing (Meter/Spool)
Ø 1.5	2.00±0.50	0.18 ±0.08	≤0.50	0.40±0.10	200.0
Ø 3.0	3.50±0.50	0.20±0.08	≤1.00	0.55±0.10	200.0
Ø 4.5	5.00±0.50	0.20±0.08	≤1.50	0.55±0.10	100.0
Ø 6.0	6.50±0.50	0.22±0.10	≤2.00	0.60±0.15	100.0
Ø 8.0	8.50±0.50	0.22±0.10	≤2.70	0.60±0.15	100.0
Ø 9.0	9.50±0.50	0.25±0.10	≤3.00	0.70±0.15	100.0
Ø 10.0	10.5±0.50	0.25±0.10	≤3.30	0.70±0.15	100.0
Ø 12.0	12.5±0.50	0.25±0.10	≤4.00	0.70±0.15	100.0
Ø 13.0	13.5±0.50	0.25±0.10	≤4.30	0.70±0.15	100.0
Ø 15.0	15.5±0.50	0.25±0.10	≤5.00	0.70±0.15	100.0
Ø 16.0	16.5±0.50	0.25±0.10	≤5.30	0.70±0.15	100.0
Ø 18.0	18.5±0.50	0.30±0.12	≤6.00	0.80±0.20	100.0
Ø 20.0	20.5±0.50	0.30±0.12	≤6.70	0.80±0.20	100.0
Ø 24.0	24.5±0.50	0.36±0.15	≤8.00	1.00±0.20	50.0
Ø 25.0	25.5±0.50	0.36±0.15	≤8.30	1.00±0.20	50.0
Ø 28.0	28.5±0.50	0.36±0.15	≤9.30	1.00±0.20	50.0
Ø 30.0	30.5±0.50	0.36±0.15	≤10.0	1.00±0.20	50.0
Ø 33.0	33.5±0.50	0.36±0.15	≤11.0	1.00±0.20	25.0
Ø 39.0	39.5±0.50	0.45±0.15	≤13.0	1.25±0.20	25.0
Ø 50.0	51.0±1.00	0.50±0.15	≤16.7	1.50±0.20	25.0

Size (mm)	Before Shrinkage		After Shrinkage		Standard Packing (Meter/Spool)
Size (mm)	I.D.(mm)	Wall Thickness(mm)	I.D.(mm)	Wall Thickness(mm)	Standard Packing (Meter/Spool)
Ø 1.5	2.00±0.50	0.18 ±0.08	≤0.50	0.40±0.10	200.0
Ø 3.0	3.50±0.50	0.20±0.08	≤1.00	0.55±0.10	200.0
Ø 4.5	5.00±0.50	0.20±0.08	≤1.50	0.55±0.10	100.0
Ø 6.0	6.50±0.50	0.22±0.10	≤2.00	0.60±0.15	100.0
Ø 8.0	8.50±0.50	0.22±0.10	≤2.70	0.60±0.15	100.0
Ø 9.0	9.50±0.50	0.25±0.10	≤3.00	0.70±0.15	100.0
Ø 10.0	10.5±0.50	0.25±0.10	≤3.30	0.70±0.15	100.0
Ø 12.0	12.5±0.50	0.25±0.10	≤4.00	0.70±0.15	100.0
Ø 13.0	13.5±0.50	0.25±0.10	≤4.30	0.70±0.15	100.0
Ø 15.0	15.5±0.50	0.25±0.10	≤5.00	0.70±0.15	100.0
Ø 16.0	16.5±0.50	0.25±0.10	≤5.30	0.70±0.15	100.0
Ø 18.0	18.5±0.50	0.30±0.12	≤6.00	0.80±0.20	100.0
Ø 20.0	20.5±0.50	0.30±0.12	≤6.70	0.80±0.20	100.0
Ø 24.0	24.5±0.50	0.36±0.15	≤8.00	1.00±0.20	50.0
Ø 25.0	25.5±0.50	0.36±0.15	≤8.30	1.00±0.20	50.0
Ø 28.0	28.5±0.50	0.36±0.15	≤9.30	1.00±0.20	50.0
Ø 30.0	30.5±0.50	0.36±0.15	≤10.0	1.00±0.20	50.0
Ø 33.0	33.5±0.50	0.36±0.15	≤11.0	1.00±0.20	25.0
Ø 39.0	39.5±0.50	0.45±0.15	≤13.0	1.25±0.20	25.0
Ø 50.0	51.0±1.00	0.50±0.15	≤16.7	1.50±0.20	25.0
