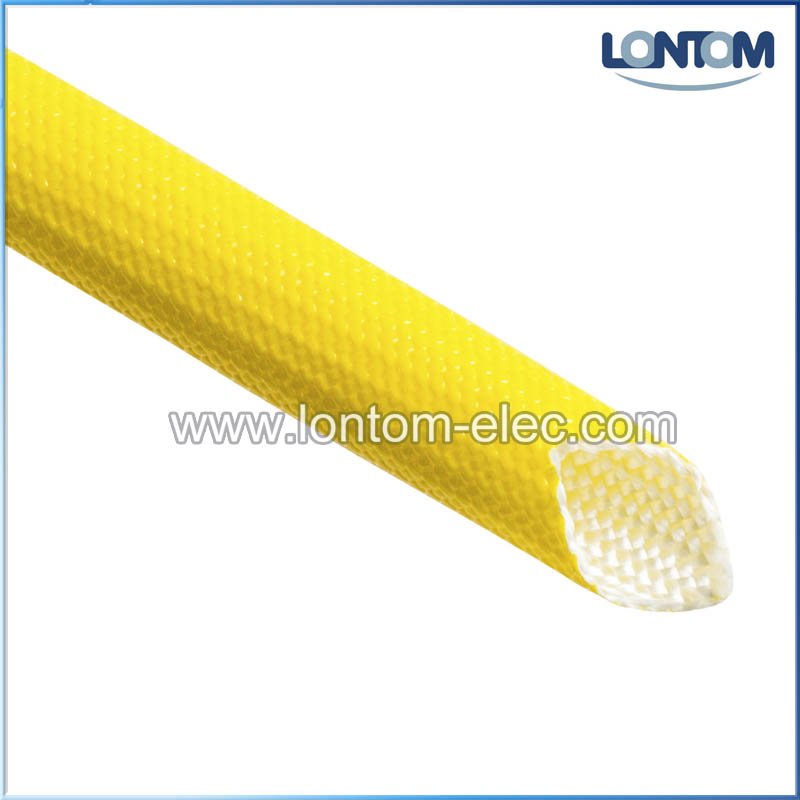

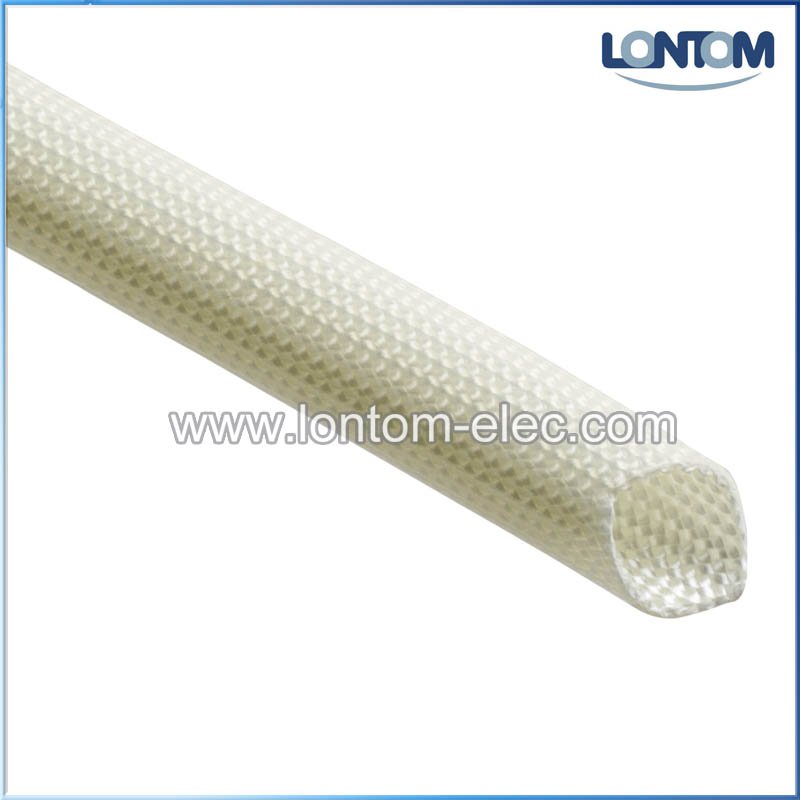

Acrylic Fiberglass Sleeving

Quantity:
  • LT-APF

Acrylic Fiberglass Sleeving is widely used for the insulation of winding lead outs and joints on Class F rated induction motors, alternators, transformers and also used in motor vehicle wiring harness manufacture for the bundling, consolidation and protection of cables.

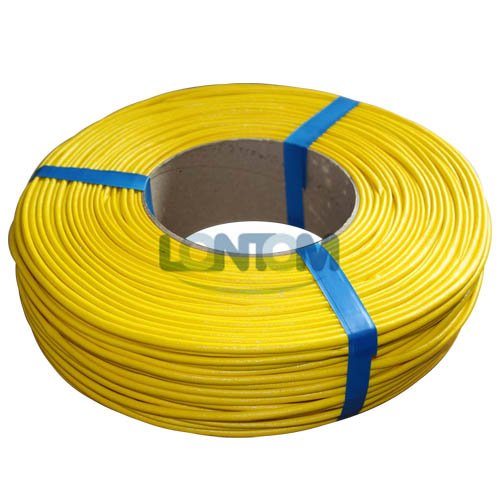

Size I.D. (mm) Wall thickness (mm) Roll Package
Min. Max. APF1500V APF2500V APF4000V Mts/Roll Mts/Carton
1.0 1.0 1.3 0.40±0.12 0.41±0.12 0.43±0.12 200 5,000
1.5 1.5 1.8 0.40±0.12 0.41±0.12 0.43±0.12 200 3,000
2.0 2.0 2.3 0.40±0.12 0.41±0.12 0.43±0.12 200 2,400
2.5 2.5 2.8 0.40±0.12 0.41±0.12 0.43±0.12 200 2,000
3.0 3.0 3.3 0.45±0.12 0.48±0.12 0.51±0.15 200 1,600
3.5 3.5 3.8 0.45±0.12 0.48±0.12 0.51±0.15 200 1,200
4.0 4.0 4.3 0.45±0.12 0.48±0.12 0.51±0.15 200 1,200
5.0 5.0 5.3 0.50±0.15 0.52±0.15 0.55±0.15 100 1,000
6.0 6.0 6.3 0.50±0.15 0.52±0.15 0.55±0.15 100 800
7.0 7.0 7.3 0.50±0.15 0.52±0.15 0.55±0.15 100 600
8.0 8.0 8.3 0.50±0.15 0.52±0.15 0.55±0.15 100 600
9.0 9.0 9.3 0.60±0.15 0.62±0.15 0.66±0.15 100 600
10.0 10.0 10.3 0.60±0.15 0.62±0.15 0.66±0.15 100 600
12.0 12.0 12.3 0.60±0.15 0.62±0.15 0.66±0.15 100 600
14.0 14.0 14.3 0.62±0.15 0.64±0.15 0.68±0.15 100 600
16.0 16.0 16.3 0.62±0.15 0.64±0.15 0.68±0.15 100 600
