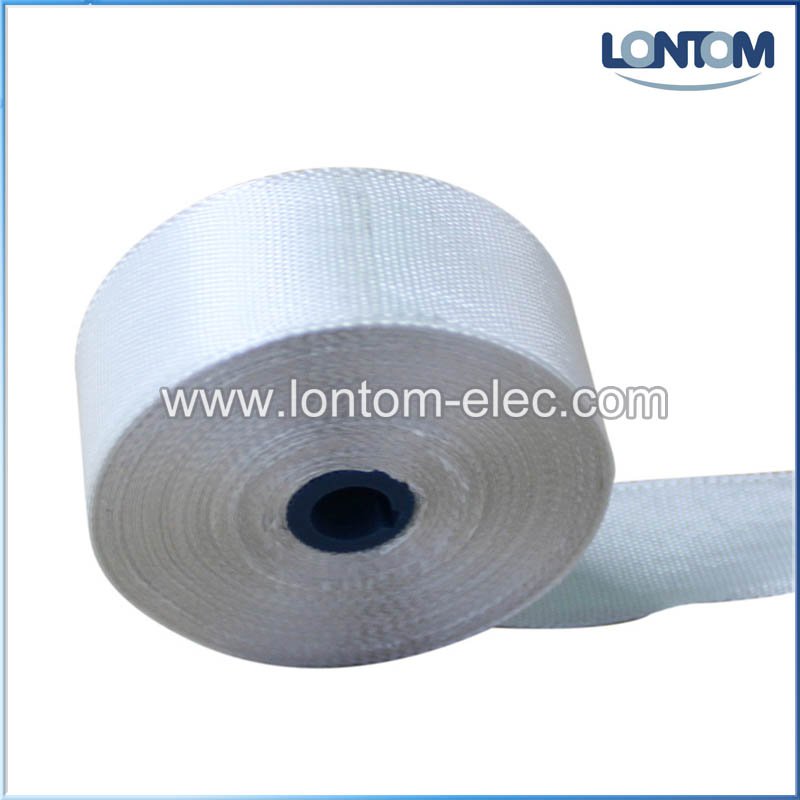

FGT Fiberglass Tape is weaved by no-alkali fiberglass yarn, with good thermal resistant and insulation features, which is widely used for windings of motor and transformer.
FGT Fiberglass Tape is weaved by no-alkali fiberglass yarn, with good thermal resistant and insulation features, which is widely used for windings of motor and transformer.
Test content
Unit
Standard
Appearance
　
Smooth and white ,not any impurity
Standard roll length
M
50 meters per roll and each roll allow one junction.
Density
warp
No./cm
22±1
weft
No./cm
11±1
Tolerance
thickness
mm
±0.01
width
mm
±1
length
m
±0.3
Metallic oxide content
%
＜0.8
Combustible content
%
0.6~2.0
Tensile strength at break
N/20mm
≥1000
Weight per unit length
g/m
±0.1%
Standard color
　
white
Test content
Unit
Standard
Appearance
　
Smooth and white ,not any impurity
Standard roll length
M
50 meters per roll and each roll allow one junction.
