Flexible,Semi-Rigid, Split Self-Wrap Braided Sleeving

Quantity:
  • LT-SWT

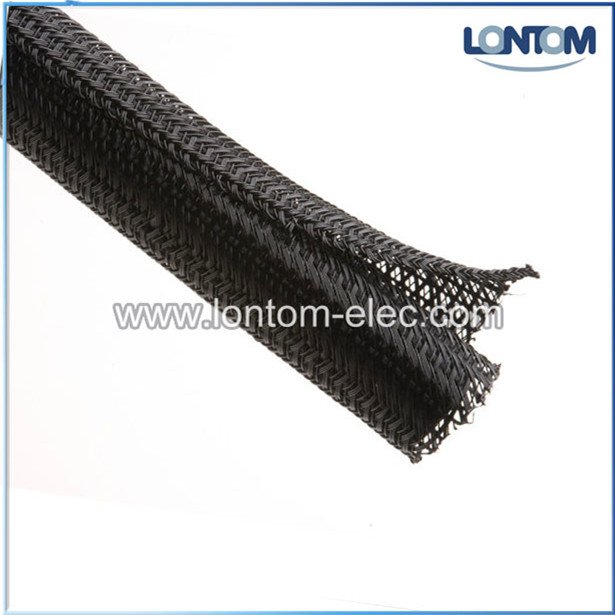

This Split Self-Wrap Sleeving is the newest technology in braided sleeving. It is a lateral split (side-entry), triaxially braided sleeve made from 10 mil~15 mil polyethylene terepthalate (PET) monofilament yarn.. The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, and the semi-rigid braided structure simply closes around the entire installation without the need for any additional fasteners (velcro, tape, etc.)
The 25% edge overlap (at nominal diameter) allows coverage around inline plugs, connectors and splices.

Diameter

Overlap

Max. Bundle Diameter

Length/Roll (Meters)

5mm

25%

6mm

200

9mm

10mm

100

13mm

14mm

50

16mm

16mm

50

19mm

20mm

25

25mm

26mm

25

32mm

33mm

25
