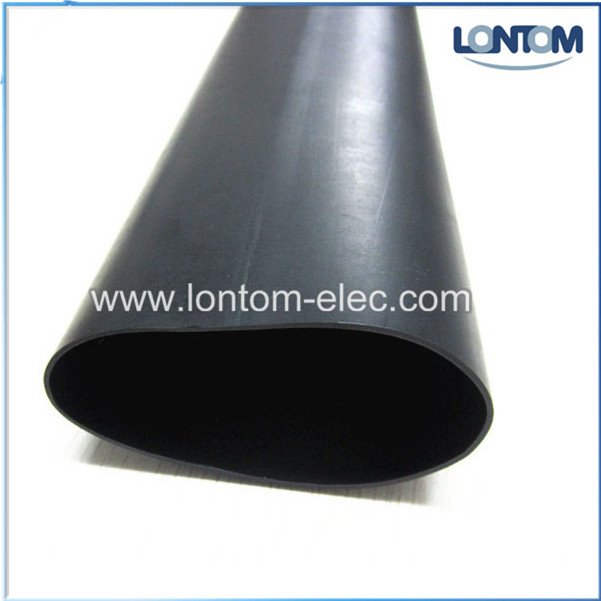

Heavy Wall Heat Shrink Tubing

Quantity:
  • LT-HHST

The tubing is supplied with an adhesive layer, adding a water tight seal to the strain relief the tubing provides. When exposed to heat (usually a bit lower than the activation temperature of the heat shrink), the inner layer begins to flow (just like a hot melt glue). When the tubing shrinks and cools down, the inner layer forms an adhesion layer between the tubing and the component or wire. This provides a watertight seal, protecting the connector and/or wire in direct burial and submersed applications.
Item After Recovered
Min Wall thickness
(mm)
Shape Length/PCS
(mm)
PCS/Carton Carton Size
(cm)
9/3 1.8 O 1220 500 36*36*126
13/4 2.4 O 1220 500 36*36*126
22/6 2.7 O 1220 180 36*36*126
33/8 3.2 O 1220 128 36*36*126
40/12 4.1 O 1220 72 36*36*126
55/16 4.1 O 1220 60 36*36*126
75/22 4.1 O 1220 45 36*36*126
85/25 4.3 O 1220 45 36*36*126
95/30 4.3 O 1220 45 36*36*126
115/34 4.3 O 1220 42 36*36*126
130/36 4.3 1220 30 36*36*126
160/50 4.3 1220 30 36*36*126
175/50 4.3 1220 30 36*36*126
205/60 4.3 1220 30 36*36*126
