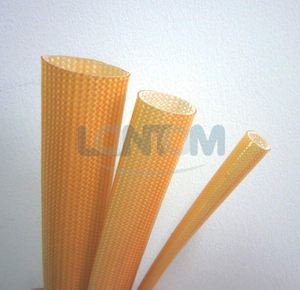

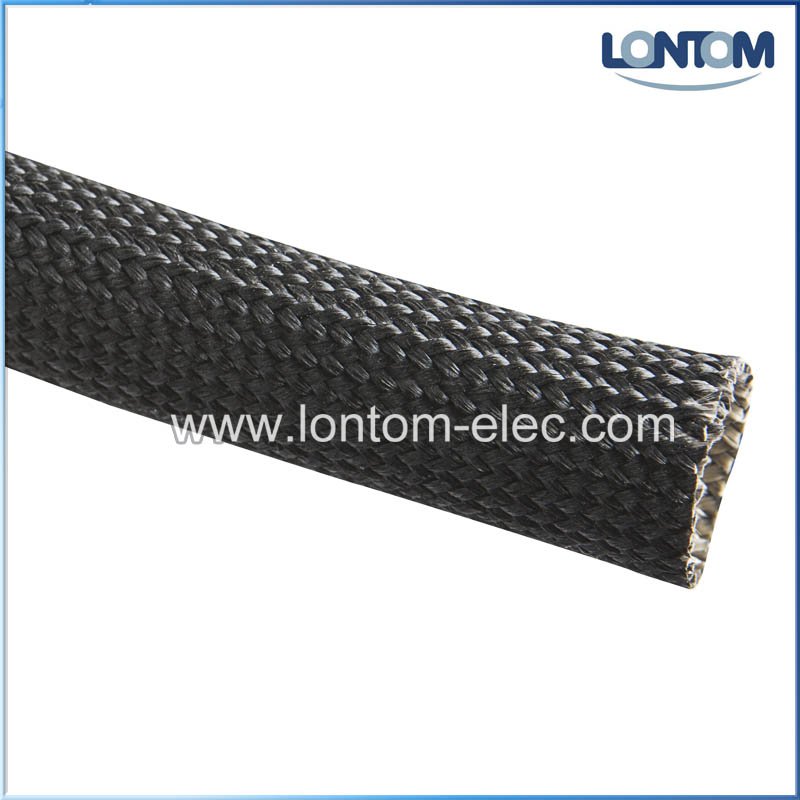

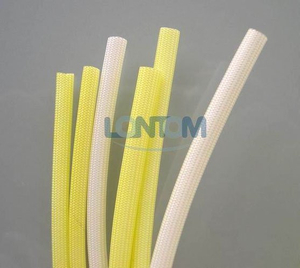

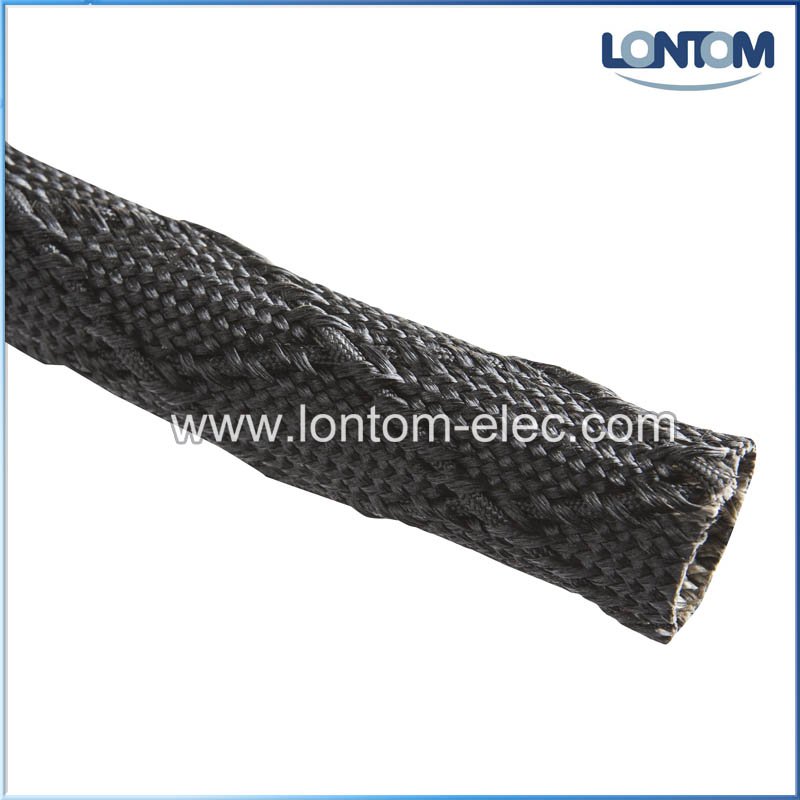

Heavy Wall Thermal Fiberglass Sleeving

Quantity:
  • LT-HCG

Heavy Wall Thermal Fiberglass Sleeving provides excellent heat protection for hoses, wire harnesses and cables.LT-HCG is available in a variety of grades, offering industrial users the option of selecting combination of properties best suited to their specific application.

Main Properties:

â—‡ Operating temperature: -40℃~+350℃

â—‡ Short time peaks at +450℃

â—‡High abrasion resistance

â—‡Inner Diameter: 10mm,15mm,20mm,28mm

â—‡Excellent chemical resistance

â—‡ Flammability: non-inflammable

â—‡ Standard color: Natural,Black,Gray,Aluminum

â—‡ Cutting tool: Scissors

Application:

â—‡Electrical appliances

â—‡ Motor and transformers connections

â—‡ Sensor tubes, brake and hydraulic lines

â—‡ Industrial hoses





Size
(mm)
Inner Dia.(mm) Reinforced Sleeve Diameter(mm) Wall thickness(mm) Cutting Length
(mm)
Meters/Roll
Min. Max. Min. Max.
10.0 10.0 15.0 1.8~2.5 0.20 0.90 50~1000 200
15.0 15.0 22.0 1.8~2.5 0.30 1.10 50~1000 200
20.0 20.0 30.0 1.8~2.5 0.40 1.25 50~1000 200
28.0 28.0 42.0 1.8~2.5 0.60 1.45 50~1000 100
