Identification Heat Shrinkable Marker Sleeves

Quantity:
  • LT-IDHST

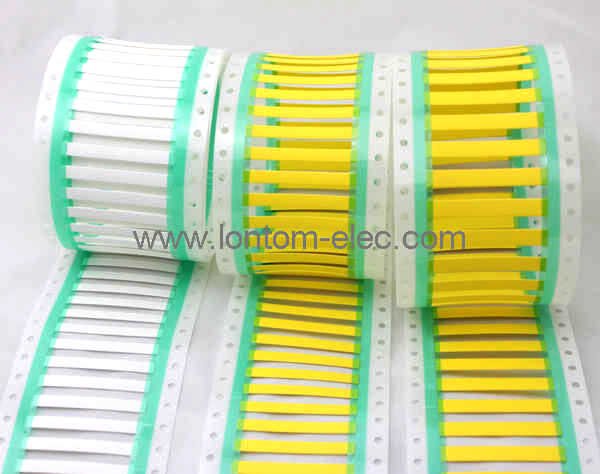

This marker sleeves can be custom printed with words and symbols on both sides by thermal transfer equipment and all markings are permanent after printing.
Size As Supplied(mm)
MAX  I.D.
After Recovery (mm)
MAX  I.D.
Recommended
Use Range (mm)
Package
inch mm 2:1 3:1 2:1 3:1 2:1 3:1
3/32 2.4 2.40 2.40 1.20 0.80 1.27~1.90 0.81~1.90 2000pcs/roll
1/8 3.2 3.20 3.20 1.60 1.07 1.765~2.66 1.11~2.66 2000pcs/roll
3/16 4.8 4.80 4.80 2.40 1.60 2.54~4.06 1.75~4.06 2000pcs/roll
1/4 6.4 6.40 6.40 3.20 2.11 3.81~5.46 2.31~5.46 1500pcs/roll
3/8 9.5 9.50 9.50 4.80 3.20 5.59~8.12 3.47~8.12 1500pcs/roll
1/2 12.7 12.7 12.7 6.40 4.20 6.99~10.79 4.64~10.79 500pcs/roll
3/4 19.1 19.1 19.1 9.50 6.35 10.16~16.25 6.99~16.25 500pcs/roll
1 25.4 25.4 25.4 12.70 8.46 14.29~21.59 9.29~21.59 250pcs/roll
1-1/2 38.1 38.1 38.1 19.10 12.7 20.95~33.02 14.05~34.95 250pcs/roll
2 5.08 50.8 50.8 25.40 16.9 27.05~42.02 27.94~44.95 250pcs/roll
1.Maximum storage temperature +50°C(+122°F)
2.Cutting in 50mm per piece,or 30 meters per roll.

marker sleeve drawing
