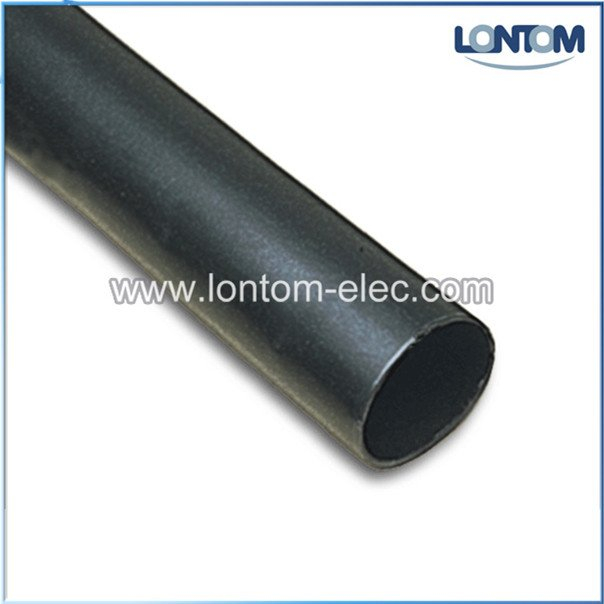

Medium Wall Heat Shrink Tubing

Quantity:
  • LT-MHST

Medium Wall Heat Shrink Tubing is designed to provide reliable performance for electrical splices, connections, and terminations, as well as mechanical and environmental protection. The tubing is fabricated from cross-linked polyolefin, with properties of highly split resistant, and fast-shrinking to provide rapid installation. Both adhesive-lined and without adhesive are available.
Item Supplied I.D.(min) After Recovery  Shape Length/PC
(mm)
I.D.(max) Wall Thickness
(mm, Min.)
8/2 8 2 1.7 O 1220
12/3 12 3 2.0 O 1220
16/5 16 5 2.2 O 1220
19/5 19 5 2.2 O 1220
22/6 22 6 2.5 O 1220
28/6 28 6 2.5 O 1220
33/8 33 8 2.7 O 1220
40/12 40 12 2.7 O 1220
55/16 55 16 2.7 O 1220
65/19 65 19 2.8 O 1220
75/22 75 22 3.0 O 1220
85/25 85 25 3.0 O 1220
95/25 95 25 3.0 O 1220
115/34 115 34 3.0 O 1220
140/42 140 42 3.0 1220
160/50 160 50 3.0 1220
180/58 180 58 3.0 1220
205/65 205 65 3.0 1220
