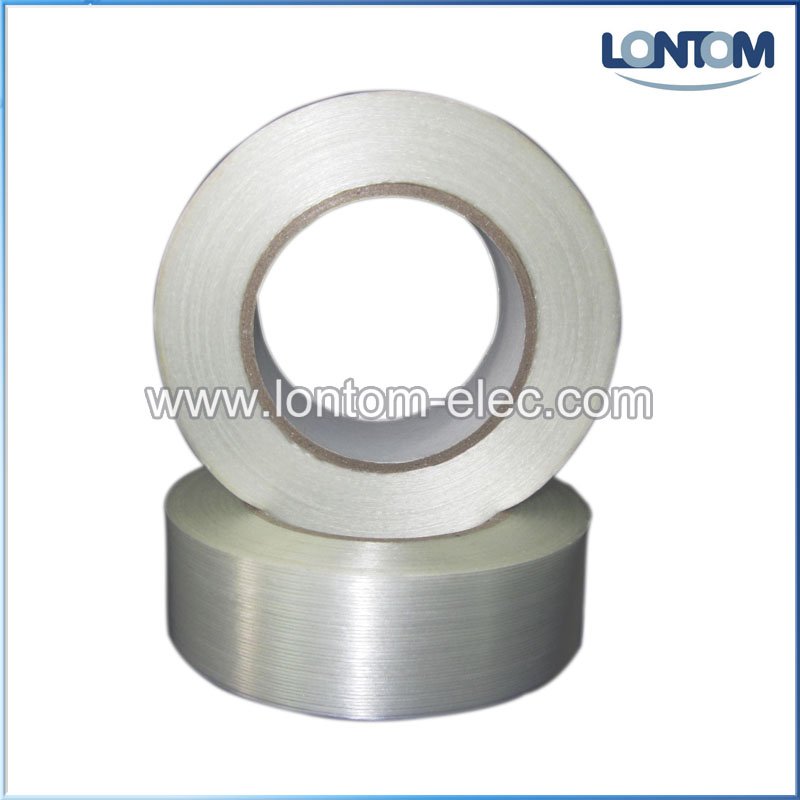

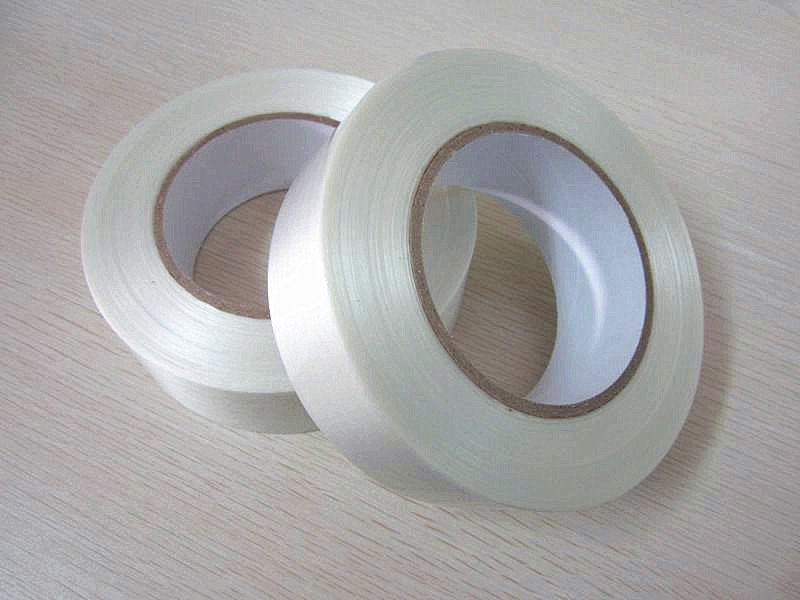

PET Film Glass Reinforced Adhesive Tape

Quantity:
  • LT-PFT

Polyester film/glass filament reinforced tape with Thermosetting acrylic pressure-sensitive Adhesive tape .This tape is especially suited for heavy duty equipment applications banding armature coils, anchoring ,lead holding of heavy gauge wires in transformers, coils and electrical motors.

Item

Standard Value

Adhesive

Acrylic

Carrier

Polyester film/Glass filament

Total Thickness (mil/mm)

0.14±0.01mm

Tensile Strength (N/25mm)

850

Adhesion to Steel at 90℃ (N/25mm)

10

Dielectric Strength (kV)

4.8

Elongation at break

6%

Heat resistance

155°C ( at short time)

130 °C (operating temperature)
