PET Heat-Shrinking Sleeve

Quantity:


Inquire Add to Basket

Model:
LT-PETHST

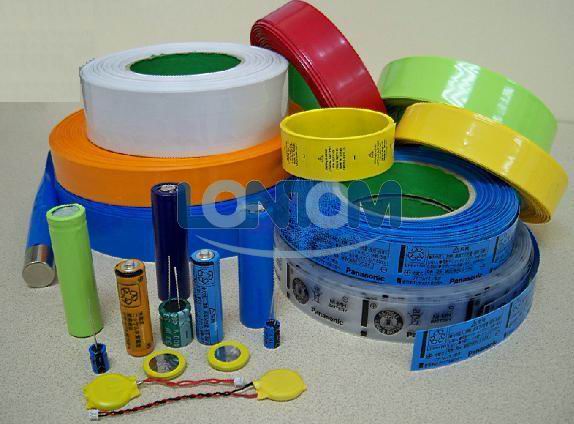

It is widely used for packing and identification of battery, inductance, and capacitor.

RELATED PRODUCTS

4:1 Semi-Rigid Adhesive Heat Shrink Tubing

Heat Shrink Tube Printing

2:1 Fabric Heat Shrink Tubing

PTFE/Teflon Non Shrink Tubing

Mini Kit Heat Shrink Tubing

2:1 Thin Wall Heat Shrink Tube

EPDM Cold Shrink Tubes

Heavy Wall Heat Shrink Tubing

Gas Hose Heat Shrink Tubing

Medium Wall Heat Shrink Tubing

Kynar/PVDF Heat Shrink Tubing

1KV,10KV Bus Bar Heat Shrink Sleeve

Non-Slip Heat Shrink Sleeve

Yellow Green Heat Shrink Tubing

3:1 Dual Wall Heat Shrink Tube

Identification Heat Shrinkable Marker Sleeves

3:1 Polyolefin Heat Shrink Tubing

PTFE Heat Shrink Tubing

2:1 Polyolefin Heat Shrink Tubing

Heat shrink Gas Hose Tube

PRODUCT LIST

CONTACT US

Add: Room 516 of Building A, No.1500 of Longwu Road, Shanghai 200231,China
Tel: 86-21-63147475
Phone: 86-13818052015
Fax: 86-21-64285332
E-mail: ellenjie@lontom-elec.com
ellenjie@163.com
QQ: 1554318254
Skype: ellenjie
Contact Person: Ms. Ellen Jie

CONTACT US

Size	Width(mm)	Thickness (×0.01mm)	Shrink Ratio(%)	Longitudinal ratio (%)	Longitudinal ratio (180±2) ℃ ×15 min
Size	Width(mm)	Thickness (×0.01mm)	Shrink Ratio(%)	Longitudinal ratio (%)	Longitudinal ratio (180±2) ℃ ×15 min
φ4	7.1±0.2	8.0±1.0	48±2	8±2	12±3
φ5	9.1±0.2	8.0±1.0	48±2	8±2	12±3
φ6	10.6±0.2	8.0±1.0	48±2	8±2	12±3
φ6.3	11.0±0.2	8.0±1.0	48±2	8±2	12±3
φ8	14.0±0.2	10.0±1.0	48±2	8±2	12±3
φ10	17.0±0.2	10.0±1.0	48±2	8±2	12±3
φ13	22.0±0.3	10.0±1.0	48±2	8±2	12±3
φ14.8	25.0±0.3	10.5±1.5	48±2	8±2	12±3
φ16	27.1±0.3	10.5±1.5	48±2	8±2	12±3
φ18	30.2±0.3	10.5±1.5	48±2	8±2	12±3
φ22	36.3±0.3	11.0±2.0	48±2	8±2	12±3
φ25	41.3±0.3	11.0±2.0	48±2	8±2	12±3
φ30	49.0±0.3	11.0±2.0	48±2	8±2	12±3
φ35	56.6±0.3	11.0±2.0	48±2	8±2	12±3
Remark: 1.Any size fromφ4.0—φ35.0 can be produced on customers’ requirements.
2. Package: I.D.(φ4 -φ22) 200 Meters/spool,
I.D.(≥φ25）100 Meters/spool.
3. Storage temperature: 20～30℃.

Size	Width(mm)	Thickness (×0.01mm)	Shrink Ratio(%)	Longitudinal ratio (%)	Longitudinal ratio (180±2) ℃ ×15 min
Size	Width(mm)	Thickness (×0.01mm)	Shrink Ratio(%)	Longitudinal ratio (%)	Longitudinal ratio (180±2) ℃ ×15 min
φ4	7.1±0.2	8.0±1.0	48±2	8±2	12±3
φ5	9.1±0.2	8.0±1.0	48±2	8±2	12±3
φ6	10.6±0.2	8.0±1.0	48±2	8±2	12±3
φ6.3	11.0±0.2	8.0±1.0	48±2	8±2	12±3
φ8	14.0±0.2	10.0±1.0	48±2	8±2	12±3
φ10	17.0±0.2	10.0±1.0	48±2	8±2	12±3
φ13	22.0±0.3	10.0±1.0	48±2	8±2	12±3
φ14.8	25.0±0.3	10.5±1.5	48±2	8±2	12±3
φ16	27.1±0.3	10.5±1.5	48±2	8±2	12±3
φ18	30.2±0.3	10.5±1.5	48±2	8±2	12±3
φ22	36.3±0.3	11.0±2.0	48±2	8±2	12±3
φ25	41.3±0.3	11.0±2.0	48±2	8±2	12±3
φ30	49.0±0.3	11.0±2.0	48±2	8±2	12±3
φ35	56.6±0.3	11.0±2.0	48±2	8±2	12±3
Remark: 1.Any size fromφ4.0—φ35.0 can be produced on customers’ requirements.
2. Package: I.D.(φ4 -φ22) 200 Meters/spool,
I.D.(≥φ25）100 Meters/spool.
3. Storage temperature: 20～30℃.
