Polyester Fiber Braided Sleeving

Quantity:
  • LT-VTE

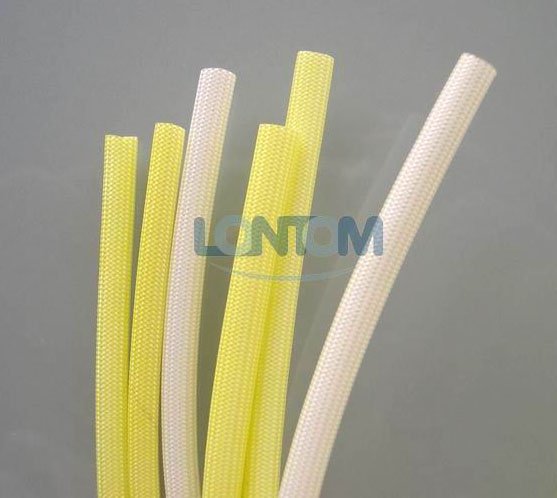

Polyester Fiber Sleeving is an insulating sleeving that braided with polyester-fiber and coated with a special kind of insulation varnish .it is available in three standard voltage: 1500 Volt - 2500 Volt - 4000 Volt.
Size I.D. (mm) Wall thickness (mm) Roll Package
Min. Max. VTE1500V VTE4000V Mts/Roll Mts/Carton
1.0 1.0 1.3 0.35±0.10 0.38±0.10 200 5000
1.5 1.5 1.8 0.35±0.10 0.38±0.10 200 3000
2.0 2.0 2.3 0.35±0.10 0.38±0.10 200 2400
2.5 2.5 2.8 0.50±0.15 0.55±0.15 200 2000
3.0 3.0 3.3 0.50±0.15 0.55±0.15 200 1600
3.5 3.5 3.8 0.50±0.15 0.55±0.15 200 1200
4.0 4.0 4.3 0.50±0.15 0.55±0.15 200 1200
5.0 5.0 5.3 0.50±0.15 0.55±0.15 100 1000
6.0 6.0 6.3 0.50±0.15 0.55±0.15 100 800
7.0 7.0 7.3 0.60±0.15 0.65±0.15 100 600
8.0 8.0 8.3 0.60±0.15 0.65±0.15 100 600
9.0 9.0 9.3 0.60±0.15 0.65±0.15 100 600
10.0 10.0 10.3 0.70±0.15 0.75±0.15 100 600
12.0 12.0 12.3 0.70±0.15 0.75±0.15 100 600
14.0 14.0 14.3 0.80±0.15 0.85±0.15 100 600
16.0 16.0 16.3 0.80±0.15 0.85±0.15 100 600
