Polyester Jacket Fiberglass Core Surge Rope

Price: $ 0
Discount Price: $ 0
Availability:
Quantity:

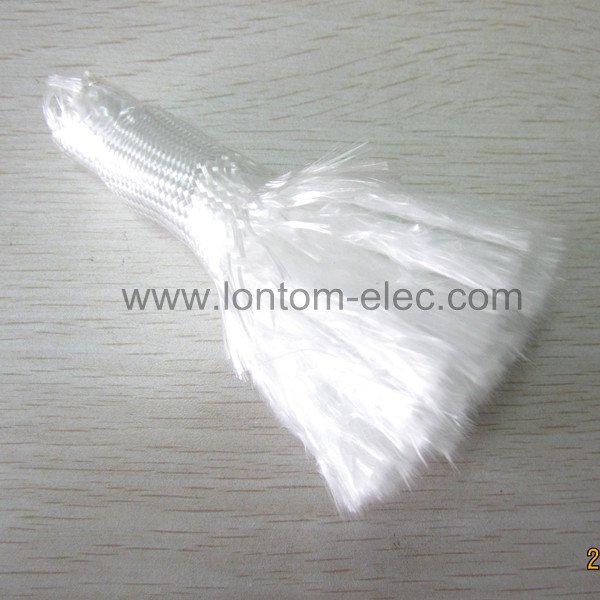

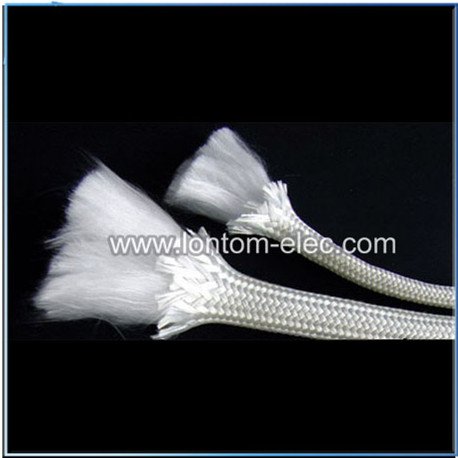

Surge ropes are comprised of 'E' class fiberglass yarn cores with a spun polyester fiber overbraid. The polyester braid provides a dry, user friendly jacket which eliminates the need to directly handle glass fibers during installation. It is designed for surge ring and other structural applications requiring a rigid insulating and high mechanical strength material.

Specification:
ITEM NO. DIAMETER
(MM)
TOLERANCE
(MM)
WEIGHT
(G/M)
PACKAGE
(M/SPOOL)
LT-DBS05 5.0 ±1 13-16 200
LT-DBS07 7.0 ±1 19-24 200
LT-DBS09 9.0 ±1 30-38 100
LT-DBS11 11.0 ±1 41-50 100
LT-DBS14 14.0 ±1 58-72 60
LT-DBS16 16.0 ±1 72-88 50
LT-DBS18 18.0 ±1 90-110 50
LT-DBS20 20.0 ±1 124-152 150
LT-DBS25 25.0 ±1 160-200 100
LT-DBS28 28.0 ±1 225-275 75
LT-DBS30 30.0 ±1 248-303 75
LT-DBS35 35.0 ±1 333-407 50
LT-DBS40 40.0 ±1 369-451 50
LT-DBS50 50.0 ±1 515-630 35
LT-DBS60 60.0 ±1 747-913 20

Remark:

Special package, sizes and weights can be supplied.



Test Report: LT-DBS07 (Diameter 7.0mm)
Test Content Test Method Standard Test Value Result
Diameter Perimeter in natural state/3.14 6mm-8mm 6.68mm OK
Braiding pitch Pitch length/3cm 15-19 17 OK
Weight Weight per meter 19-24g 21.3g OK
Filling Material No. of glass yarn 6 6 OK
Thermal resistance After heating(175ºC, 24h) No crack in appearance Pass OK
 Tensile Strength Longitudinal break strength >800 lbs Pass OK

  Package:
p1010723_副本
