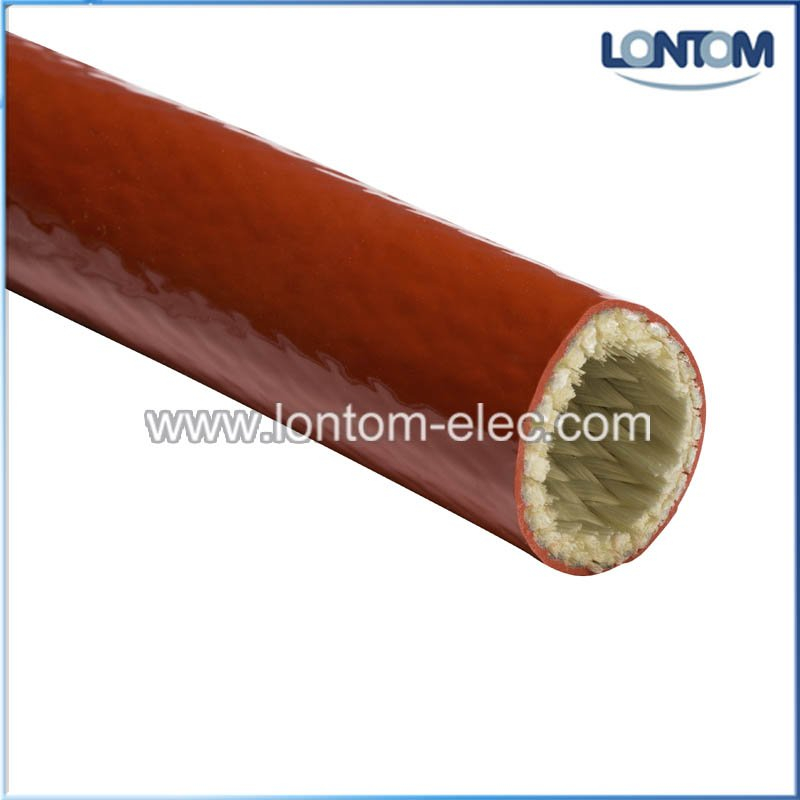

High Temperature Firesleeve (LT-SFG) is made of knitted fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber. It is designed to protect hoses, wires and cables from the hazards of high heat and occasional flame. It protects continuously to 260℃ and will withstand a molten splash at 1150℃.

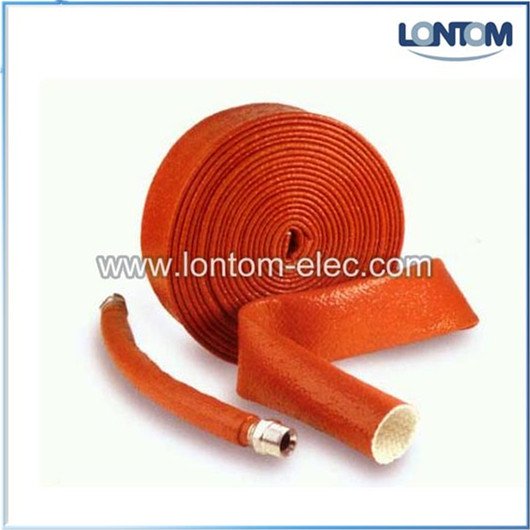

This sleeve is the perfect cover to protect hydraulic hoses, pneumatic lines and wiring bundles..
High Temperature Firesleeve (LT-SFG) is made of knitted fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber. It is designed to protect hoses, wires and cables from the hazards of high heat and occasional flame. It protects continuously to 260℃ and will withstand a molten splash at 1150℃.
This sleeve is the perfect cover to protect hydraulic hoses, pneumatic lines and wiring bundles..
Main Properties:
â—‡Operating temperature: -65°C - 260°C
◇ Short time peaks at 1150℃
â—‡Resistant to hydraulic fluids, lubricating oils, and fuels
â—‡ Good abrasion resistance Very flexible
â—‡Available size: Φ5mm--Φ150mm
â—‡ Standard Color: Black, Brick Red, Blue
â—‡ Cutting tool: Scissors
â—‡Certificate: RoHS ,MSDS
Application:
â—‡ High temperature protection
â—‡ Smelting project
â—‡ Hydraulic system
â—‡ Wire boundles
Size:
I.D.(mm)
Tolerance(mm)
Wall Thickness(mm)

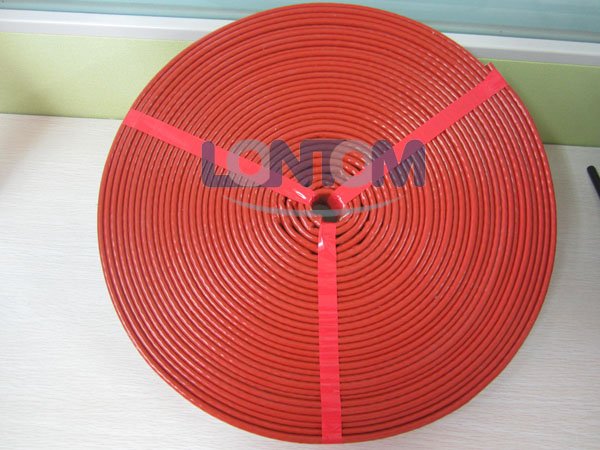

Normal Package
Ф5-Ф10
±0.3
2.5±0.2
50 mts/roll
Ф12-Ф18
±0.4
3.0±0.3
30 mts/roll
Ф20-Ф30
±0.8
3.5±0.4
25 mts/roll
Ф35-Ф55
±1.0
3.8±0.5
20 mts/roll.
Ф60-Ф100
±1.0
4.0±0.5
20 mts/roll
Ф105-Ф150
±1.0
5.0±0.5
20 mts/roll
Main Properties:
â—‡Operating temperature: -65°C - 260°C
◇ Short time peaks at 1150℃
â—‡Resistant to hydraulic fluids, lubricating oils, and fuels
