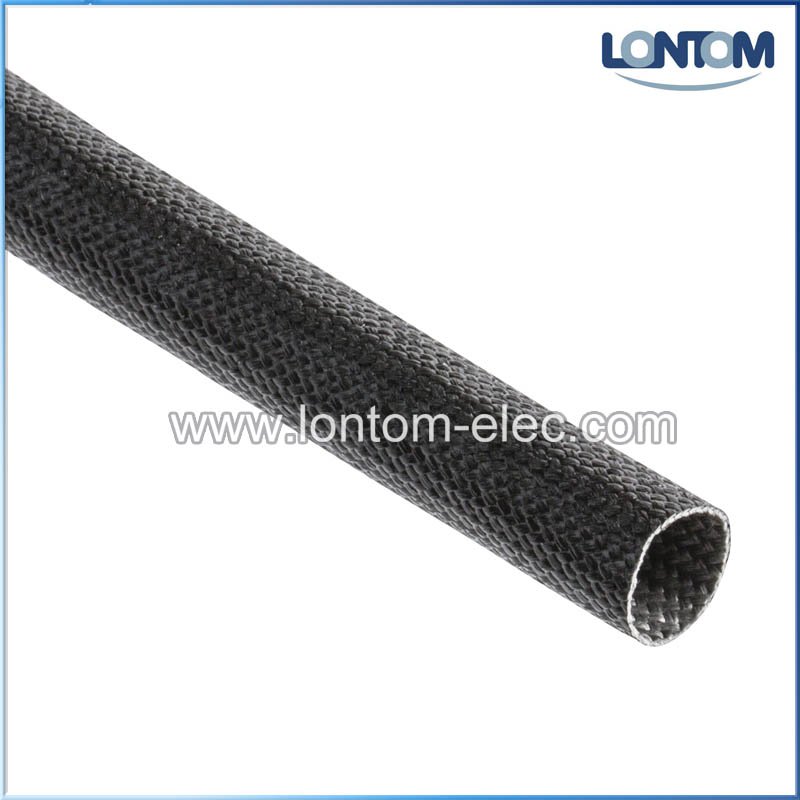

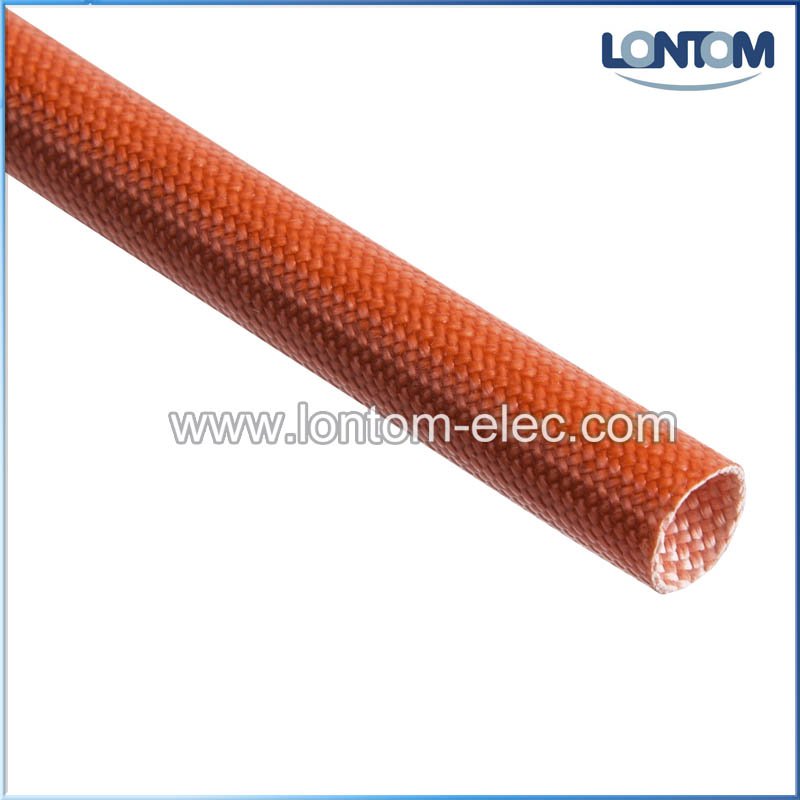

Silicone Fiberglass Sleeving

Quantity:
  • LT-SSG

Silicone Fiberglass Sleeving is used to protect and insulate leads and wiring harnesses used in Aerospace, Automotive, Household appliances and Rail and Mass transit.
Size Inner Dia.(mm) Wall thickness(mm) Ro1l Package
Min. Max. SSG1500V SSG2500V SSG4000V Mts/Roll Mts/Carton
1.0 1.0 1.3 0.40±0.12 0.41±0.12 0.50±0.15 200 5,000
1.5 1.5 1.8 0.40±0.12 0.41±0.12 0.50±0.15 200 3,000
2.0 2.0 2.3 0.40±0.12 0.41±0.12 0.50±0.15 200 2,400
2.5 2.5 2.8 0.40±0.12 0.41±0.12 0.50±0.15 200 2,000
3.0 3.0 3.3 0.50±0.12 0.52±0.12 0.52±0.15 200 1,600
3.5 3.5 3.8 0.50±0.12 0.52±0.12 0.52±0.15 200 1,200
4.0 4.0 4.3 0.50±0.12 0.52±0.12 0.52±0.15 200 1,200
5.0 5.0 5.3 0.50±0.12 0.52±0.12 0.55±0.15 100 1,000
6.0 6.0 6.3 0.50±0.12 0.52±0.12 0.55±0.15 100 800
7.0 7.0 7.3 0.50±0.12 0.52±0.12 0.55±0.15 100 600
8.0 8.0 8.3 0.50±0.12 0.52±0.12 0.55±0.15 100 600
9.0 9.0 9.3 0.60±0.12 0.62±0.12 0.65±0.15 100 600
10.0 10.0 10.3 0.60±0.12 0.62±0.12 0.65±0.15 100 600
12.0 12.0 12.3 0.60±0.12 0.62±0.12 0.65±0.15 100 600
14.0 14.0 14.3 0.70±0.12 0.73±0.12 0.78±0.15 100 600
16.0 16.0 16.3 0.70±0.12 0.73±0.12 0.78±0.15 100 600
