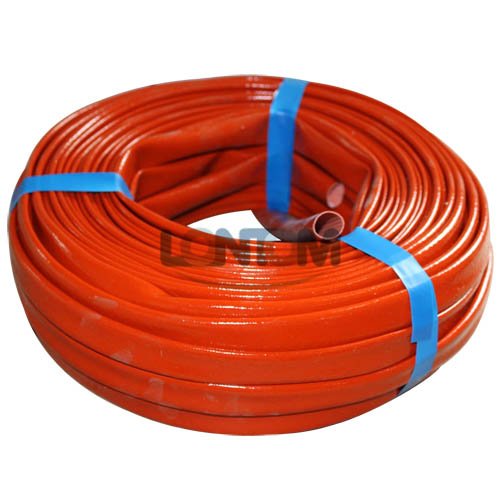

Silicone Rubber Fiberglass Sleeving

Quantity:
  • LT-FRS

Silicone Rubber Fiberglass Sleeving is an insulating sleeving produced with a thermal process. The fibreglass is coated with a silicone rubber elastomer; it is available in three standard voltage: 4000 Volt - 7000 Volt - 10000 Volt.
Size I.D. (mm) Wall thickness (mm) Roll Package
Min. Max. FRS4000V FRS7000V FRS10000V Mts/Roll Mts/Carton
1.0 1.0 1.3 0.40±0.06 0.45±0.06 0.50±0.06 200 5,000
1.5 1.5 1.8 0.40±0.06 0.45±0.06 0.50±0.06 200 3,000
2.0 2.0 2.3 0.45±0.06 0.50±0.06 0.55±0.06 200 2,400
2.5 2.5 2.8 0.45±0.06 0.50±0.06 0.55±0.06 200 2,000
3.0 3.0 3.3 0.45±0.06 0.50±0.06 0.55±0.06 200 1,600
3.5 3.5 3.8 0.45±0.06 0.50±0.06 0.55±0.06 200 1,200
4.0 4.0 4.3 0.50±0.08 0.55±0.08 0.60±0.08 200 1,200
5.0 5.0 5.3 0.50±0.08 0.55±0.08 0.60±0.08 100 1,000
6.0 6.0 6.3 0.50±0.08 0.55±0.08 0.60±0.08 100 800
7.0 7.0 7.3 0.55±0.10 0.60±0.10 0.65±0.10 100 600
8.0 8.0 8.3 0.55±0.10 0.60±0.10 0.65±0.10 100 600
9.0 9.0 9.3 0.55±0.10 0.60±0.10 0.65±0.10 100 600
10.0 10.0 10.3 0.60±0.10 0.70±0.10 0.75±0.10 100 600
12.0 12.0 12.3 0.60±0.10 0.70±0.10 0.75±0.10 100 600
14.0 14.0 14.3 0.70±0.10 0.75±0.10 0.80±0.10 100 600
16.0 16.0 16.3 0.70±0.10 0.75±0.10 0.80±0.10 100 600
