Yellow Green Heat Shrink Tubing

Quantity:
  • LT-YGHST

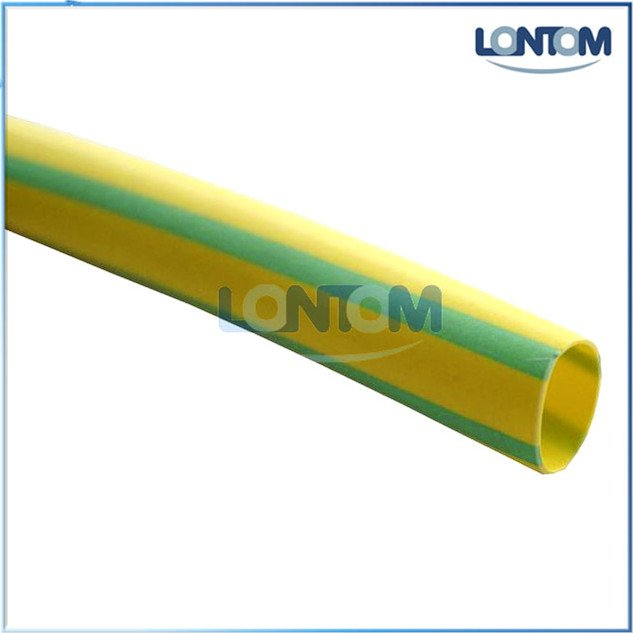

The yellow green heat shrink tube is widely used to wire or cable middle earth wire marks, special wire cable or conduit marks etc.



Size As Supplied Size(mm) After Supplied Size(mm) Package
 (mm) I.D. W.T. I.D. W.T. Meters/Roll
Φ1.0 1.5±0.3 0.15±0.08 ≤0.65 0.28±0.10 200
Φ1.5 2.0±0.3 0.18±0.08 ≤0.85 0.32±0.10 200
Φ2.0 2.5±0.3 0.18±0.08 ≤1.00 0.40±0.10 200
Φ2.5 3.0±0.3 0.18±0.08 ≤1.30 0.40±0.10 200
Φ3.0 3.5±0.4 0.18±0.08 ≤1.50 0.40±0.10 200
Φ3.5 4.0±0.4 0.22±0.08 ≤1.80 0.42±0.10 200
Φ4.0 4.5±0.4 0.25±0.08 ≤2.00 0.45±0.10 200
Φ4.5 5.0±0.4 0.25±0.08 ≤2.30 0.50±0.10 100
Φ5.0 5.5±0.4 0.25±0.08 ≤2.5 0.55±0.10 100
Φ6.0 6.5±0.4 0.28±0.08 ≤3.0 0.55±0.10 100
Φ7.0 7.5±0.4 0.28±0.08 ≤3.5 0.55±0.10 100
Φ8.0 8.5±0.5 0.28±0.08 ≤4.0 0.60±0.10 100
Φ9.0 9.5±0.5 0.30±0.10 ≤4.5 0.60±0.10 100
Φ10 10.5±0.5 0.30±0.10 ≤5.0 0.60±0.10 100
Φ11 11.5±0.5 0.30±0.10 ≤5.5 0.60±0.10 100
Φ12 12.5±0.5 0.30±0.10 ≤6.0 0.65±0.10 100
Φ13 13.5±0.5 0.35±0.12 ≤6.5 0.65±0.10 100
Φ14 14.5±0.5 0.35±0.12 ≤7.0 0.70±0.10 100
Φ15 15.5±0.6 0.40±0.12 ≤7.5 0.75±0.10 100
Φ16 17.0±0.6 0.40±0.12 ≤8.0 0.75±0.10 100
Φ17 17.5±0.6 0.40±0.12 ≤8.5 0.75±0.10 100
Φ18 19.0±0.7 0.40±0.15 ≤9.0 0.80±0.15 100
Φ20 22.0±0.7 0.40±0.15 ≤10.0 0.82±0.15 100
Φ22 24.0±0.7 0.40±0.15 ≤11.0 0.82±0.15 100
Φ25 26.0±0.7 0.55±0.15 ≤12.5 1.00±0.15 50
Φ28 29.0±0.7 0.55±0.15 ≤14.0 1.00±0.15 50
Φ30 31.5±0.7 0.55±0.15 ≤15.0 1.05±0.15 50
Φ35 36.5±0.7 0.55±0.15 ≤17.5 1.15±0.15 50
Φ40 41.5±0.7 0.55±0.15 ≤20.0 1.20±0.15 50
Φ45 46.0±0.7 0.55±0.15 ≤22.5 1.20±0.15 25
Φ50 51.0±0.7 0.55±0.15 ≤25.0 1.20±0.15 25
